(570/580/590) 47-120 inch TV Stand SPEEDSMOUNT Kiosk monitor Jamboard smartboard interactive display touchscreen kiosk classroom
IMPORTANT INSTALLATION INSTRUCTION
Please follow the correct installation sequence:
- Mount the TV bracket first.
- Then attach and tighten the middle plate to the two legs.
⚠️ Do NOT install the two legs first. If the legs are tightened before mounting the TV bracket, the bracket may not fit properly between the two legs.
Correct order: TV Bracket → Middle Plate → Two Legs
See picture 2 for details
Model no:570 SGD 159 for 1 pc order
SGD 119 each for 10 pcs order
TV Size 42"-75"
Weight Limit:80 kg
VESA Compliance:400 x 400mm
600 x 400mm
700 x 500mm
TV Mounting Height 1150- 1525 mm from TV center to floor
Material Cold Steel
Wheel lock Yes
Middle shelf to floor 640MM
Model no:580 SGD 179 FOR 1 PC order
SGD 129 for 10 pcs order
TV Size:75"-100″
Weight Limit:120 kg
VESA Compliance:400 x 400mm
600 x 400mm
600 x 600mm
800 x 600mm
900 x 600mm
TV Mounting Height:1150- 1525 mm from TV center to floor
Material Cold roll Steel
Wheel lock Yes
packaging size : 107*67*16CM
Middle shelf to floor 695MM

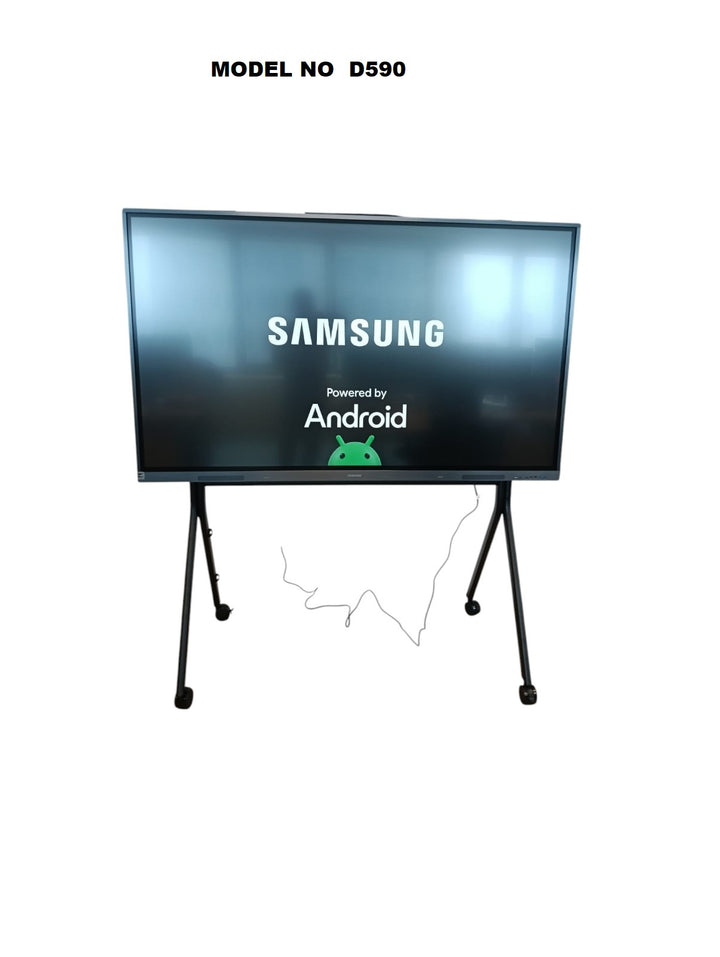

Model no:590 SGD 199
SGD 159 each for 10 pcs order
TV Size:86"-120″
Weight Limit:200 kg
VESA Compliance:400 x 400mm
600 x 400mm
600 x 600mm
800 x 600mm
1200 x 600mm
TV Mounting Height:1150- 1525 mm from TV center to floor
Material: Cold Steel
Wheel lock Yes
Middle shelf to floor 790MM
Digital signage
75"/86"/120inch tv stand for choice
real life installation
