supports 3 displays stacked vertically or 2 displays side-by-side horizontally; max total load 120 kg; accommodates VESA up to 1600 × 600 mm).

• Supported configurations

• • 3TVS-high (vertical stack): up to 3 displays up to 46inch

• • 2TVs-wide (horizontal): up to 2 displays, each up to 55″.

• 1 TV each up to 75–100″ (subject to individual display weight/height).

• Maximum allowable total load: 120 kg (distributed).

• Per-display allowance (examples): 3-stack: ~40 kg each; 2-wide: up to 60 kg each.

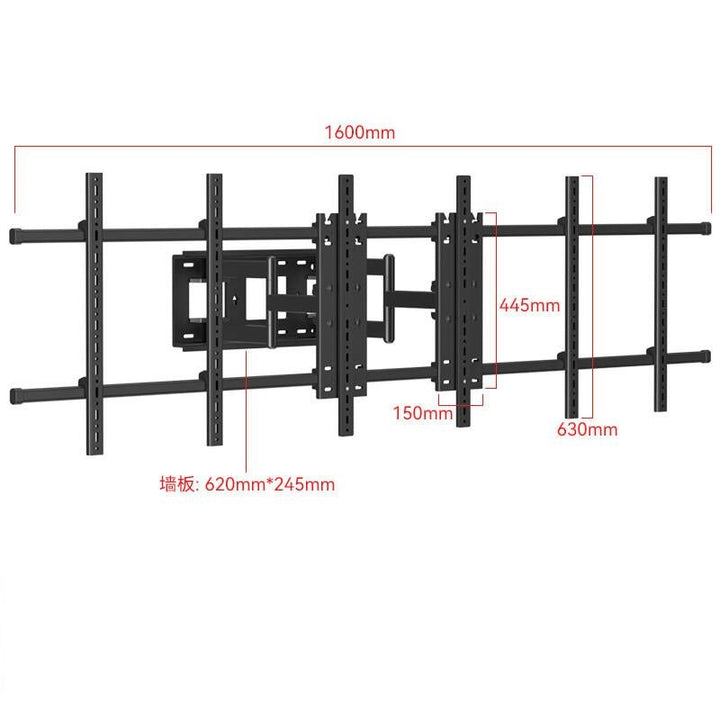

• VESA compatibility: adjustable from 600 × 200 mm up to 1600 × 600 mm (mount plate slots allow full range).

• Mounting standard: wall/structural plate with 4 anchor points; also compatible with steel framed column or freestanding base.
