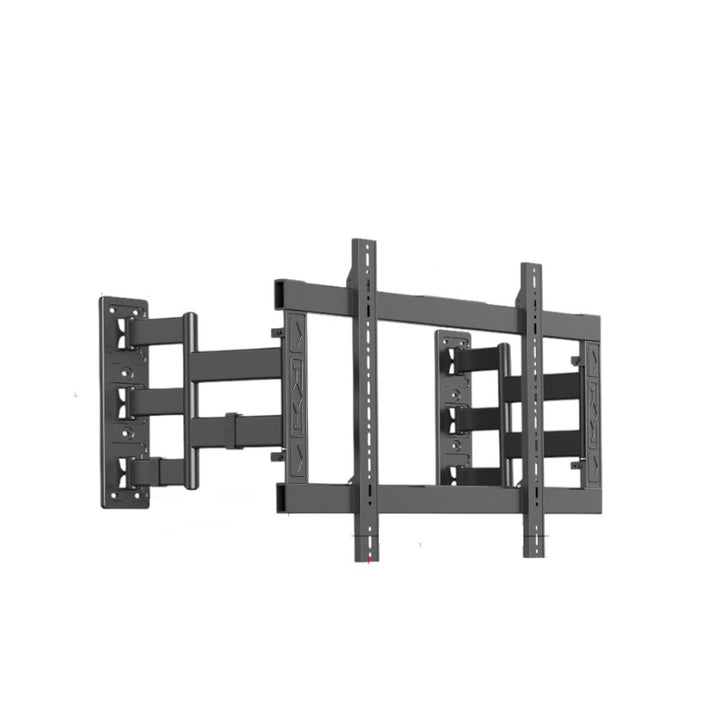

(AVR1086)85-100 INCH max loading 400KG heavy duty TV bracket SPEEDSMOUNT swing full motion double arm

Product video

https://youtube.com/shorts/I2F2oOiGIdc

Dimensions & Mounting Range

• Max wall plate length (outer install): 1640 mm

• Max wall plate length (inner install): 1200 mm

• Vertical bracket height: 630 mm

• Arm mount height: 430 mm

• Distance from wall: 35 mm – 430 mm (adjustable extension)

• Supported VESA hole patterns: 300×100 mm up to 1000×600 mm

Supported TV Sizes

• Inner installation: 75″ – 150″

• Outer installation: 80″ – 150″

 Load Capacity

• Maximum load: 400kg
