(DS90) 17-32 inch Monitor stand SPEEDSMOUNT Gas Strut Desktop Mount for 32 "

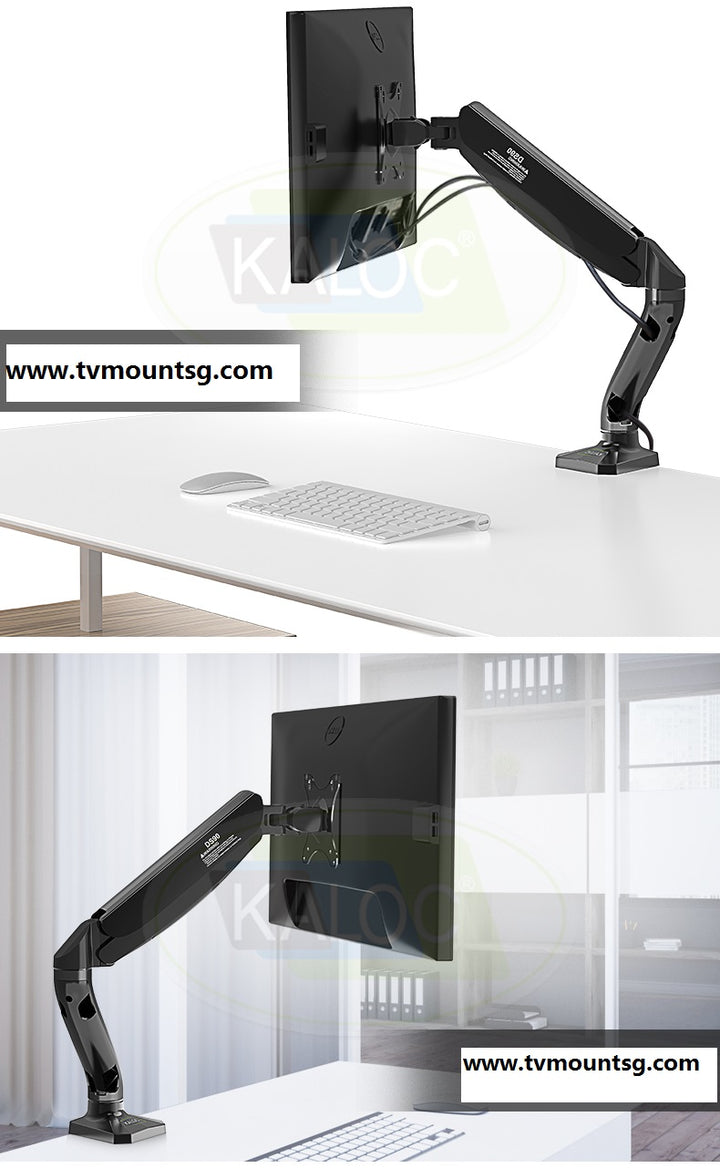

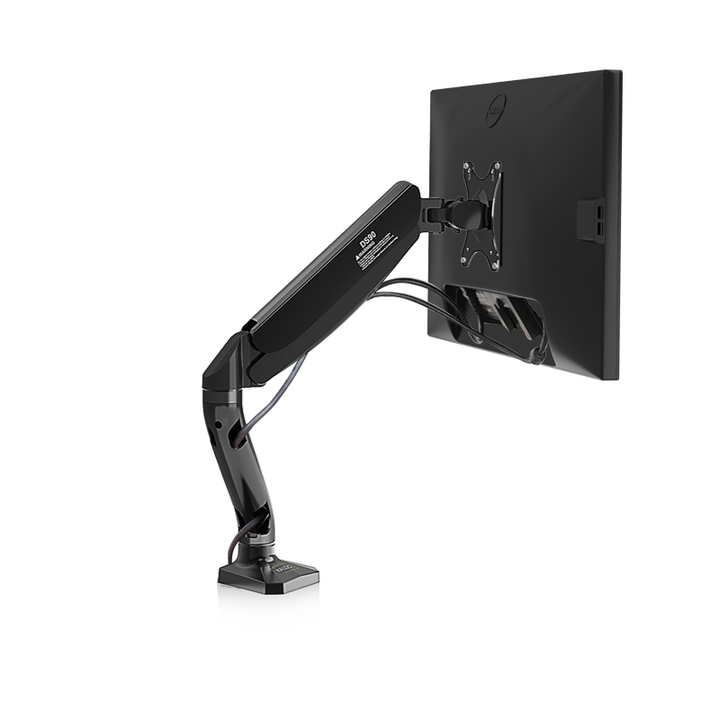

Kaloc DS90 – Single Monitor Gas Spring Desk Mount

Supported Screen Size: 17″ to 32″
Weight Capacity: 2–9 kg (4.4–19.8 lbs)
VESA Compatibility: 75×75 mm, 100×100 mm

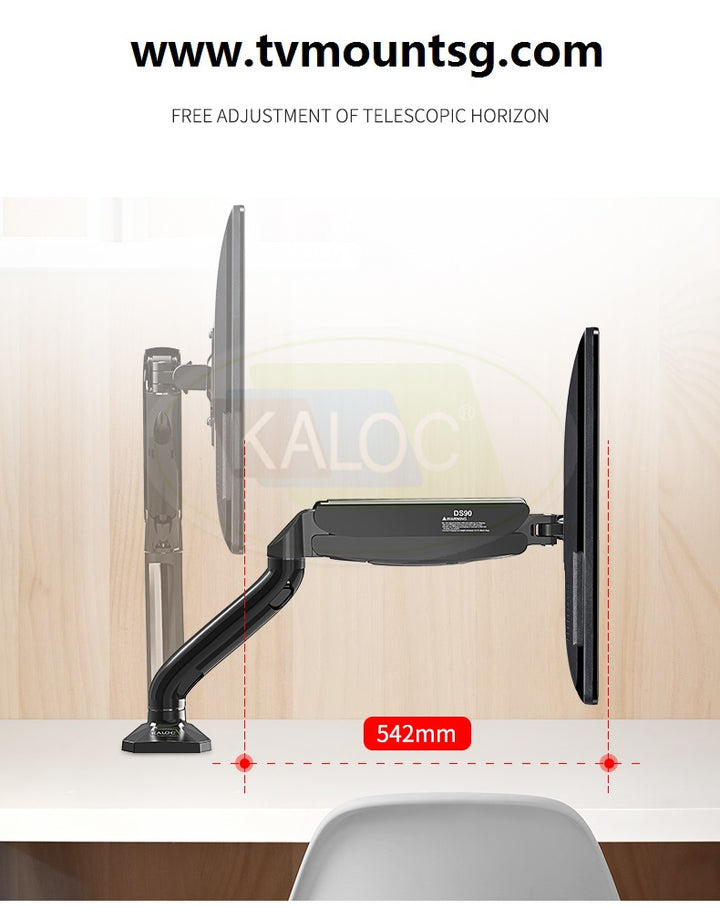

Arm Extension: Up to 542 mm
Height Adjustment Range: 100 mm to 420 mm

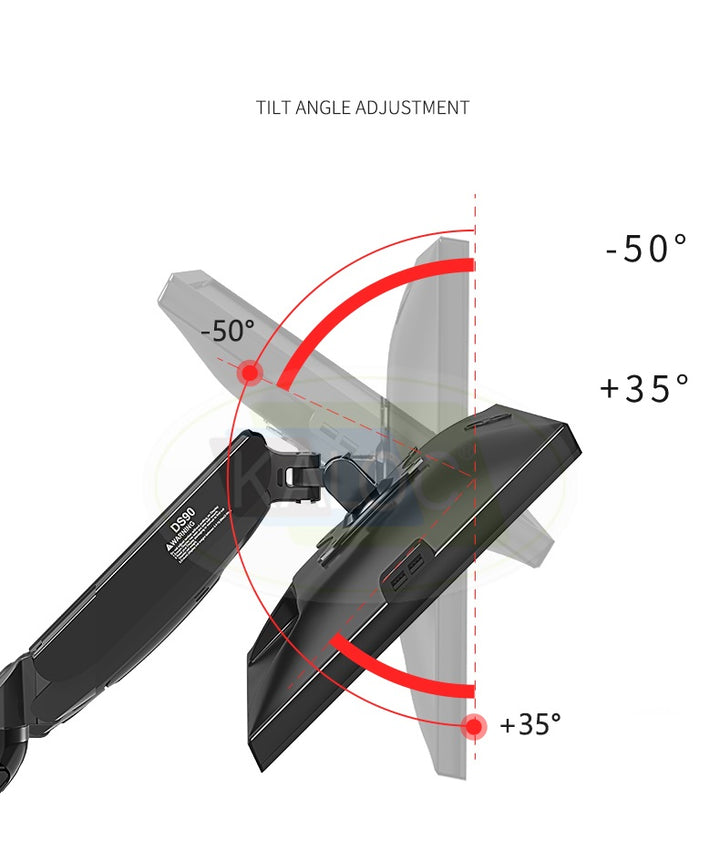

Tilt Range: -50° to +35°

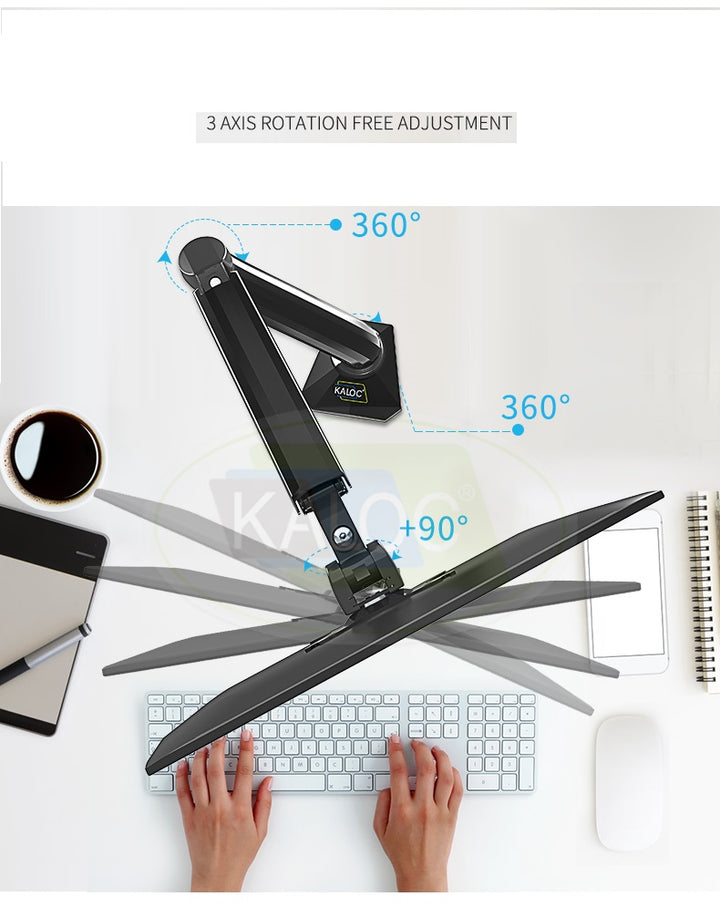

Swivel Range: ±90°
Rotation: 360° (landscape to portrait)
Mounting Options:

• Clamp Mount: Supports desk thicknesses from 15 mm to 95 mm

• Grommet Mount: Requires a desktop hole diameter of 10 mm to 50 mm
  Clamp Clearance: Minimum of 60 mm depth required
  Materials: Aluminum, metal, and plastic
  Color: Black
  Cable Management: Integrated system to keep cables organized
  Product Dimensions: Approximately 105 x 420 x 542 mm
  Product Weight: Approximately 2.7 kg

How to find the best monitor stand in Singapore
1. Monitor weight, gas strut monitor stand need mini 2 kg weight

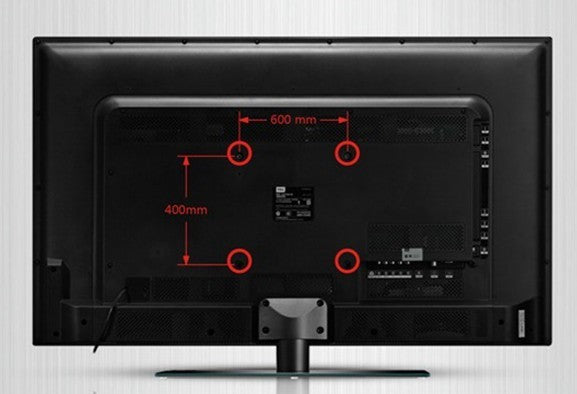

2. Monitor VESA hole distance as picture
3. Height adjustability
4. cable management.

Need to check item 1. and 2 before confirm order

Very important: need to mount the monitor first. then you can use tool to loose the knob between 2 section arms to adjust height. without monitor mounted. can not do height adjusblity.

need below information to confirm order.

Monitor Specifications

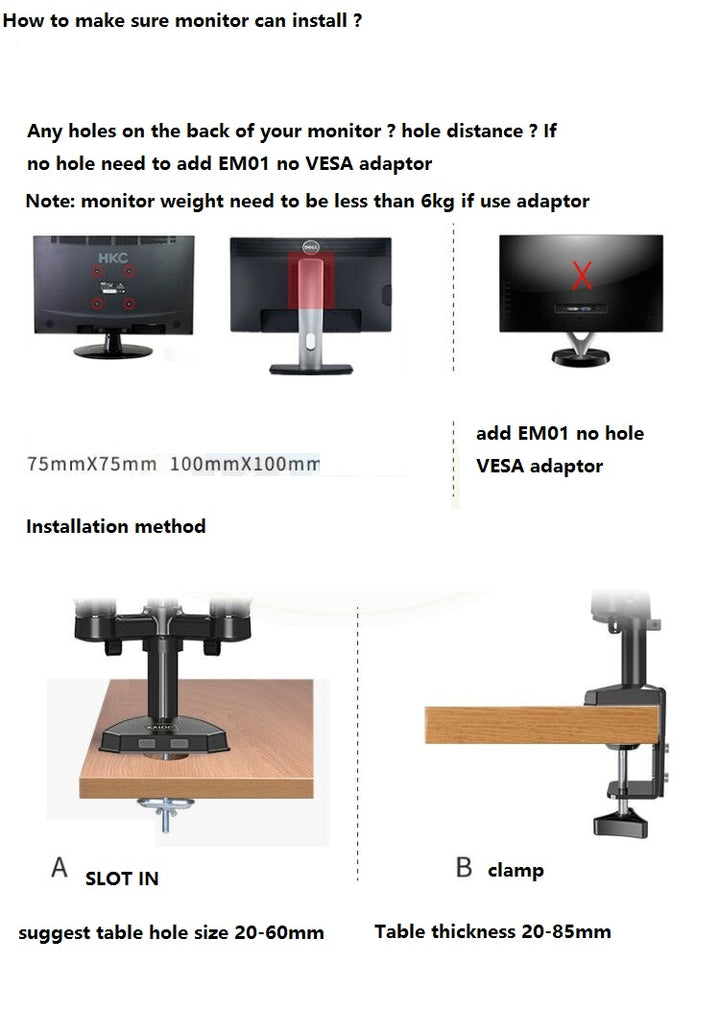

• Any holes on the back of your monitor? Hole distance. If there is no hole, need to add Non hole adaptor EM01 or EM02
  • • For more information on VESA holes, please visit this link
• Monitor weight ?

Table Specifications

• G-Clamp on or slot in (Cable Grommet) , or free standing on table
  • For slot in type, any available cable grommets on your table?
  • For clamp type, table thickness ?
  • For free standing. prefer base size ?

https://tvmountsg.com/blog/pick-monitor-stand/

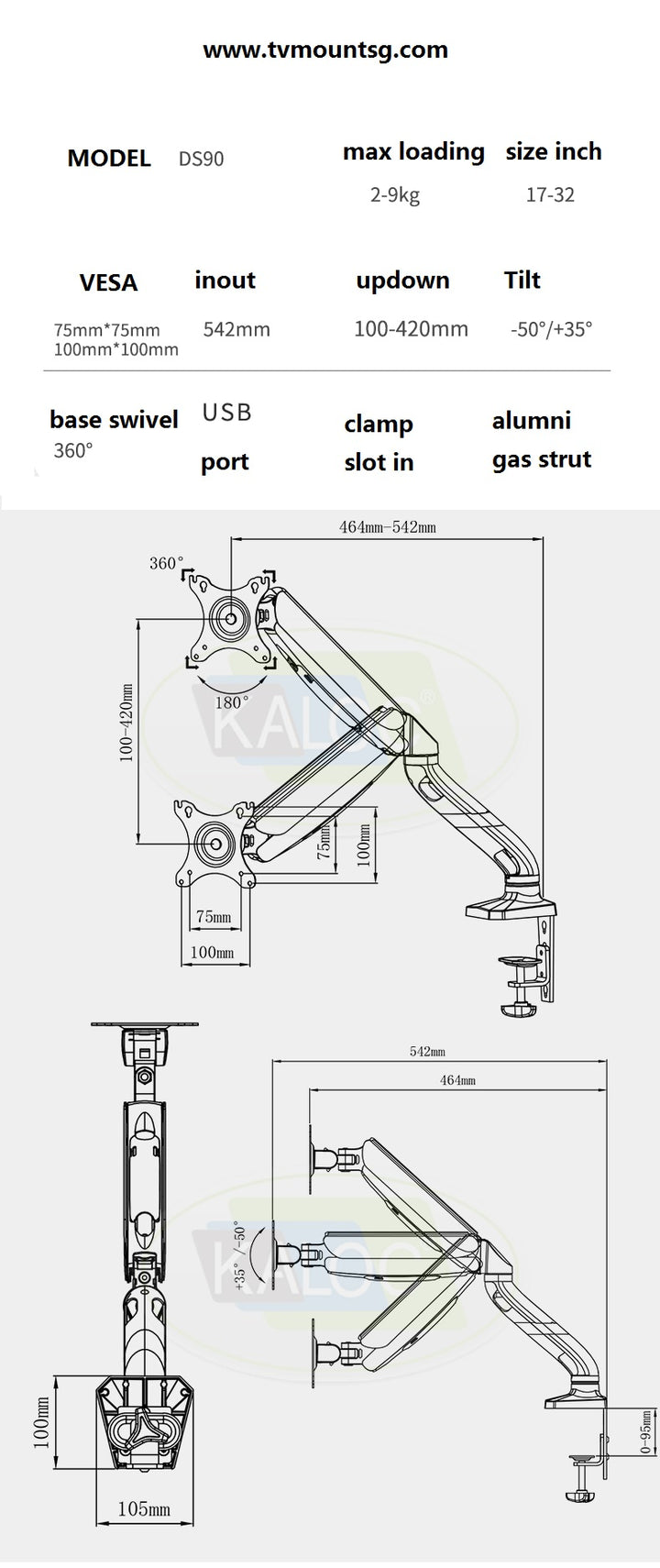

Please check facebook for real installation picture and size drawing.

Full motions flexibility with all directional effortless adjustment without tools used
Durable gas-strut cylinder and conical joints constructed for smooth and stable operation
Ecological design concept relax your life
Integrated cable management conceals inside provide clean ,neat and clutter-free appearance
Compact and retractable design increase your work space
