Fiber Fusion Splicer/Fiber Fusion Machine/Hot Fusion Machine Fully Automatic Jumper Fiber Optic Fiber

Lead time 5-10 DAYS to restock

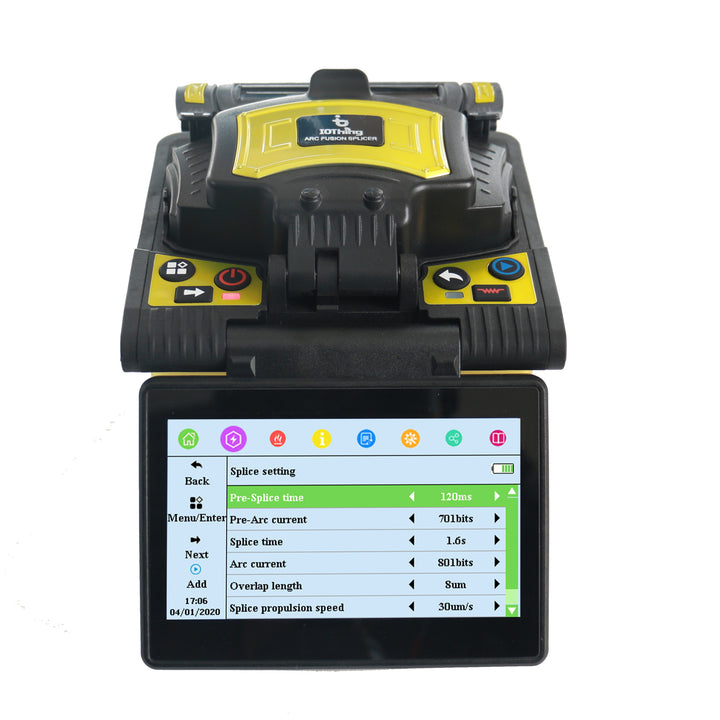

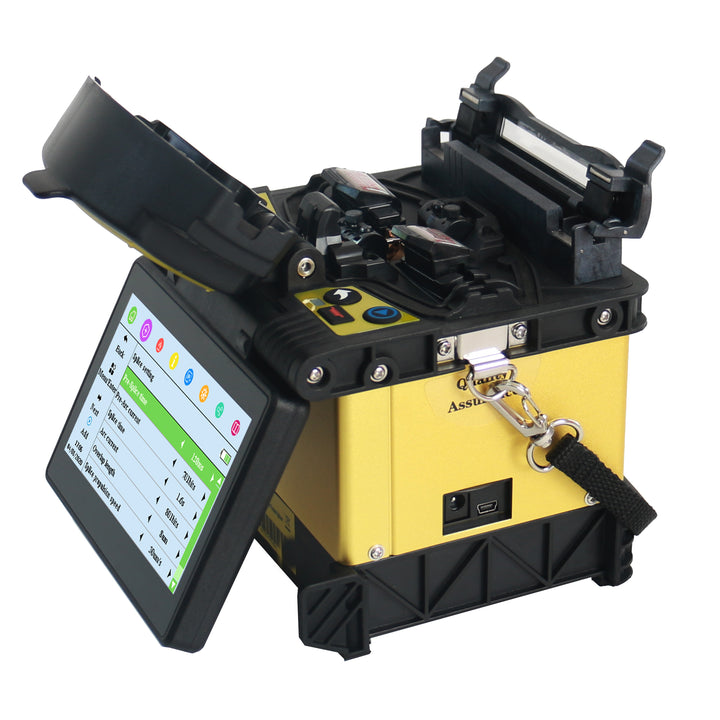

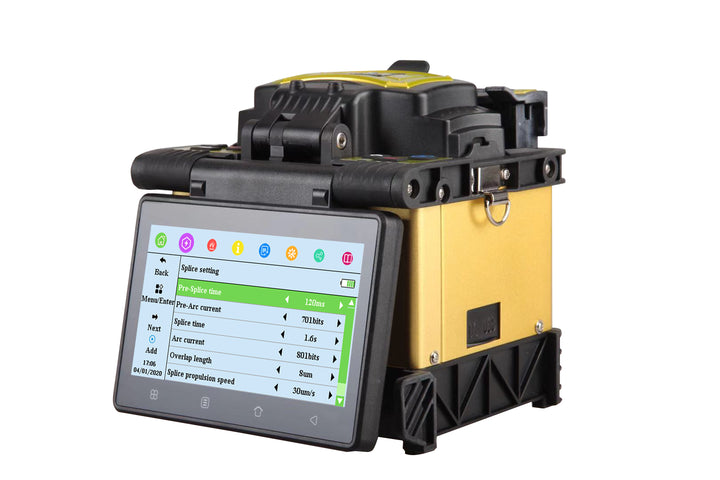

Model No: FM01 – Fiber Fusion Splicer

• Splicing Modes: Supports automatic, semi-automatic, and manual operation

• Alignment Options: Core-to-core, clad-to-clad, accurate, manual, and semi-automatic alignment

• Splicing Speed:

  • 9 seconds (Standard Mode)

  • 7 seconds (Fast Mode)

• Pre-set Splicing Programs:

  • 8 pre-stored groups

  • Up to 792 custom groups

• Record Storage:

  • Stores 10,000 splicing records

  • Supports image recording of each splice

Ideal for professional fiber optic installations requiring speed, precision, and detailed record-keeping.

Optical Fiber Fusion Splicer is mainly used for optical fiber cable maintenance and relative operations. Thus it is also called fiber cable splicer. It is a device that uses high precision propulsion structure to push two fibers to get closer to each other and uses an electric arc to melt two optical fibers together at their end faces, to form a single long fiber. Optical fiber fusion splicers are mainly applied by : Telecom carriers, ISP, network project contractors, laboratories. And they're applied in : Fiber cable network maintenance, telecom projects, emergent repairing, optical experiments, manufacture and testing of optical devices, academic researches in colleges.
