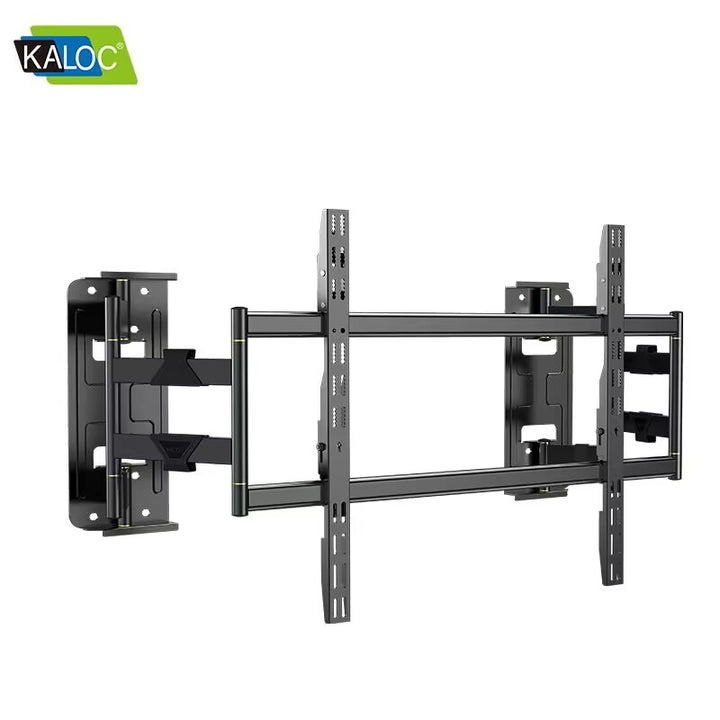

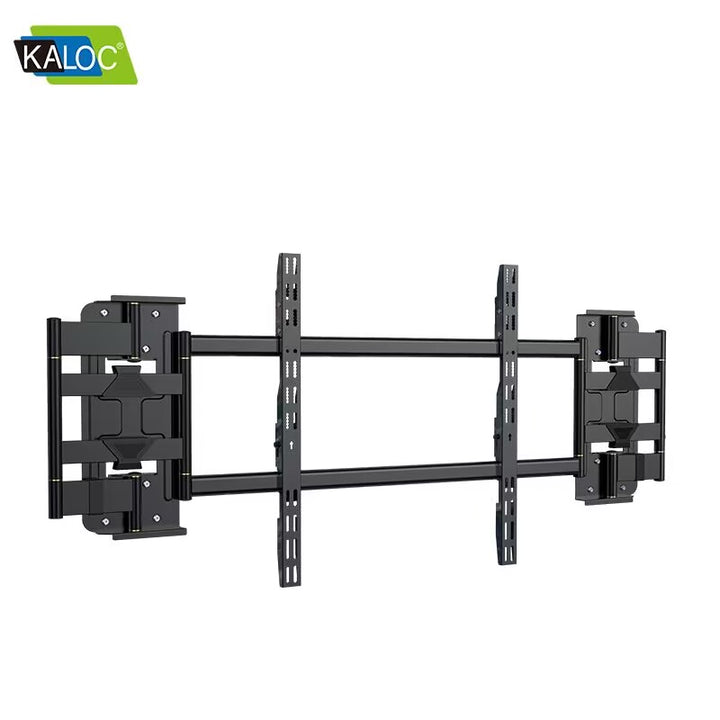

(Kaloc NX90/NX100/NX120) 65-120 inch TV bracket SPEEDSMOUNT double arm swing

$199.00 SGD
Add to WishlistCompare
Ask a Question
SKU: NX100 120
Availability: In Stock Pre order Out of stock
Categories: TV Bracket - Full Motion Double Arm
Description

Video

https://youtu.be/Pr2xeZxRwMg

https://youtu.be/tQY0h-V8CLs



Best For

  1. Large TVs mounted on walls with power outlets, cable ducts, or uneven surfaces

  2. TVs with narrow VESA mounting patterns (≤ 200 mm left-to-right)

Ideal Applications

Perfect for large TV installations requiring space for:

  • In-wall power kits

  • Cable raceways

  • Wall boxes

  • Cable trunking systems


KALOC NX90 SGD 99

Heavy-Duty Full Motion TV Wall Mount (65”–90”)

Technical Specifications

  • Screen Size: 65" – 90"

  • Load Capacity: Up to 90 kg

  • VESA Compatibility:

    • 200 × 200 mm

    • 400 × 400 mm

    • 600 × 400 mm

    • Up to 600 × 600 mm

🔄 Movement & Adjustment

  • Tilt: approx. +6° / -7°

  • Swivel: up to 100°–160°

  • Level adjustment: ±3°

  • Extension range:

    • Min: ~34–50 mm

    • Max: up to 422–466 mm

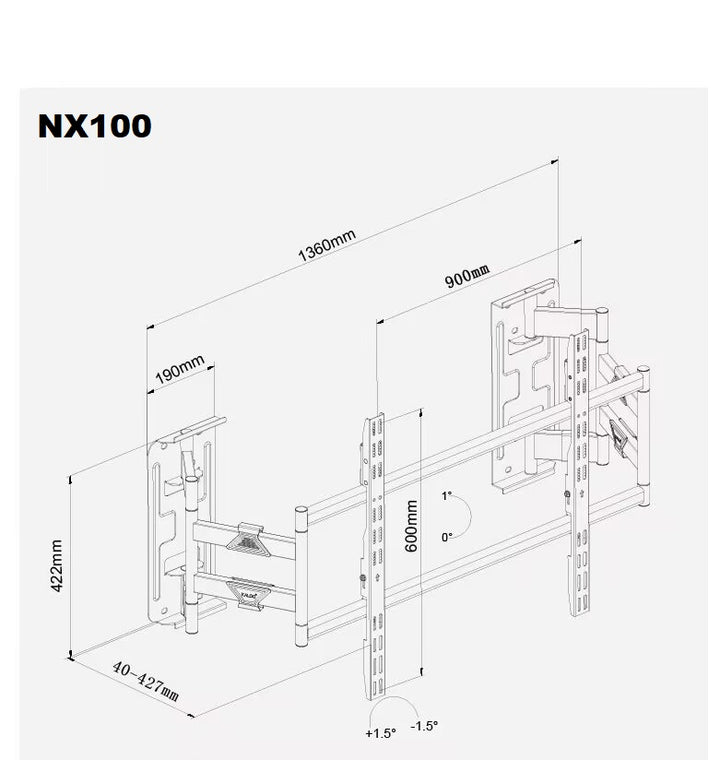

Kaloc  NX100max Full-Motion TV Wall Bracket    SGD 139

       TV to wall distance : 40-427 mm adjustable

  • TV Size Compatibility: Ideal for 75–98 inch screens
  • VESA Support: 200 × 200 mm to 900 × 600 mm
  • Maximum Load: Supports up to 100 kg
  • Tilt Range: +0/-1° tilt adjustment
  • Horizontal adjustment :+/-  -1.5°
  • Swivel/Articulation: Full-motion swivel for optimal viewing angles
  • Packaging: Color-boxed, ~18 kg packaged weight (106×48×9 cm)

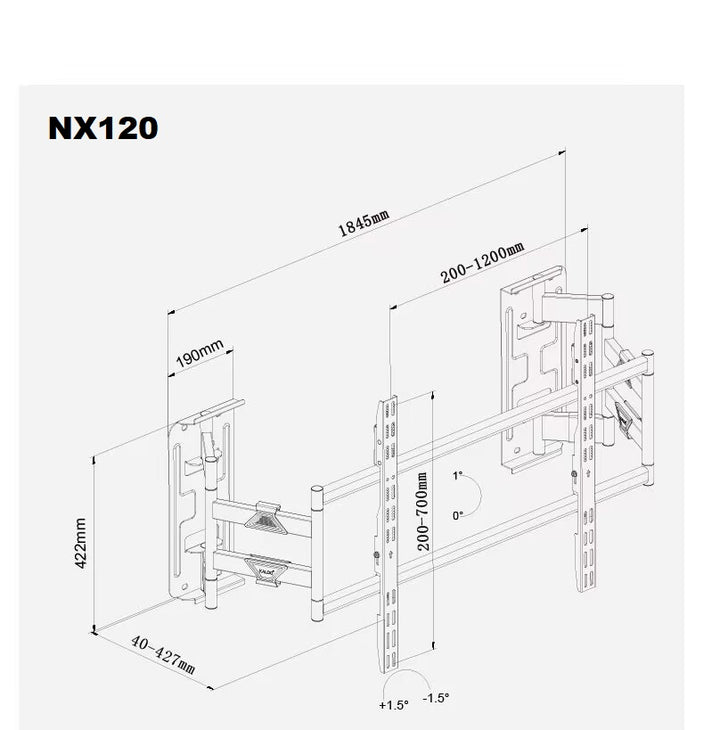

Kaloc NX120 Full-Motion TV Wall Bracket  SGD 199

  • TV to wall distance : 40-427 mm adjustable

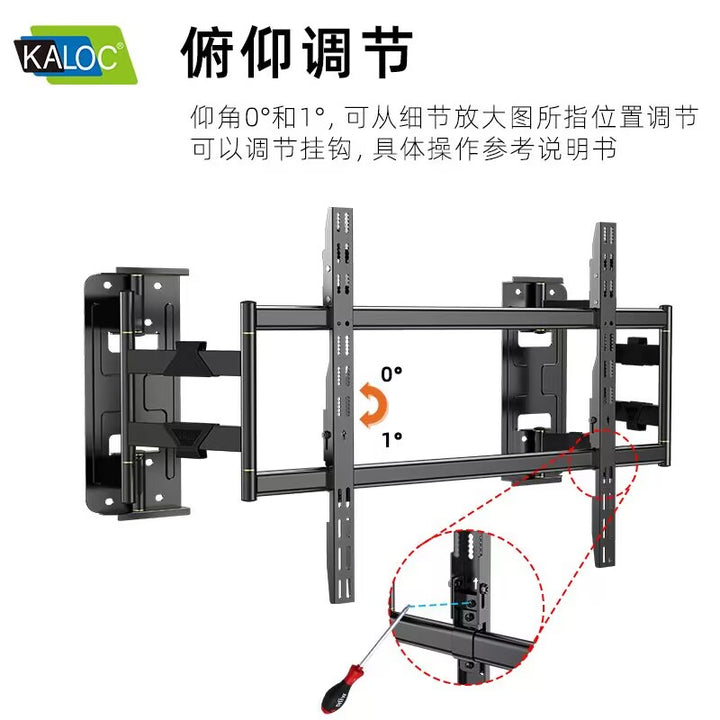

  • Tilt Range: +0/-1° tilt adjustment

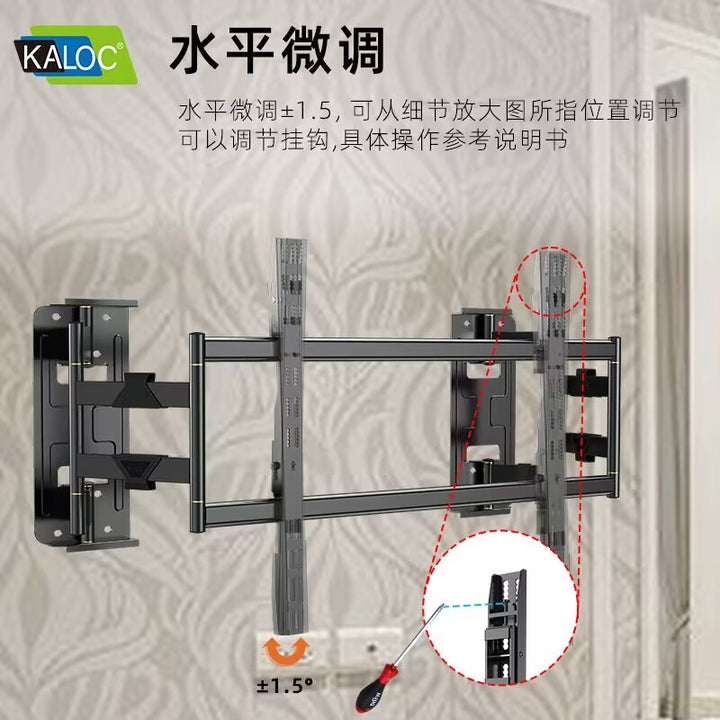

  • Horizontal adjustment :+/-  -1.5°

  • TV Size Compatibility: Optimized for 85–120 inch screens

  • VESA Support: 200 × 200 mm up to 1200 × 700 mm

  • Maximum Load:  160kg

  • Motion: Full-motion tilt/swivel capability for flexible positioning



KALOC NX120 – Designed for Real Walls, Not Perfect Walls

When installing ultra-large TVs (85”–120”), one common challenge is wall obstacles—power sockets, trunking, wall boxes, or uneven surfaces. The KALOC NX120 is engineered to solve this problem with a smart full-motion design that creates usable space behind the TV.

Key Selling Point: Space for Socket & Cable Management

Unlike fixed brackets, the NX120 provides a 40–427mm adjustable wall distance, allowing installers to easily bypass:

  • Power sockets

  • Data points

  • Cable trunking

  • Wall irregularities

This means no hacking, no repositioning sockets—clean installation with full accessibility.
