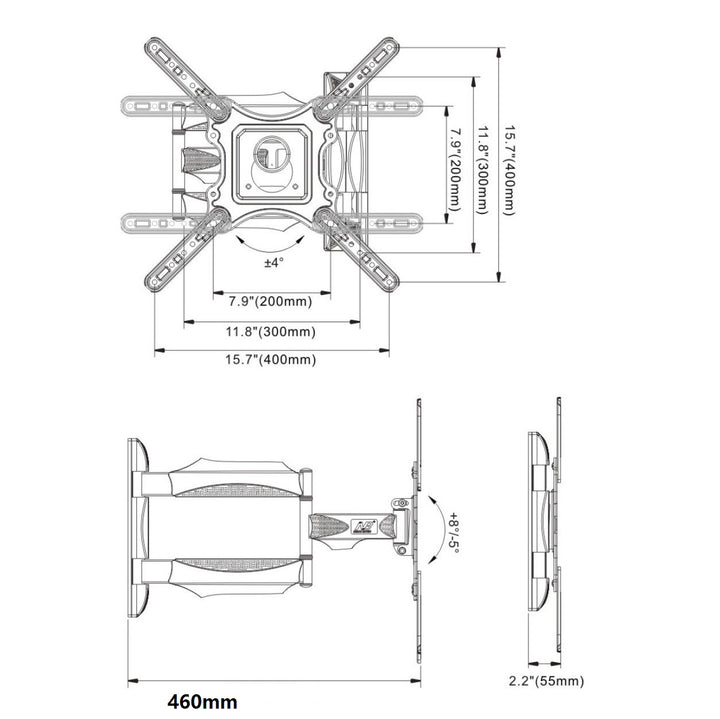

Model no:W6
TV Size:32″ – 47″ ( LED TV up to 55 inch)
Weight Limit:27.3kg
VESA Compliance:- 100 x 100mm
– 200 x 100mm
– 200 x 200mm
– 400 x 200mm
– 400 x 400mm
Tilt Angles: -2° ~ + 10°
Swivel: 180°
Cable Management:Yes
Min. Extension: 50 mm
Max. Extension: 460 mm, TV can turn 90 degree for any TV width less than 900 mm
Colour:  Black
Material: SPCC
Surface Treatment:Powder Painting Coating Finished

How to find the right TV bracket ?

TV/Wall Specifications

• TV Size (CRT TV can not install), curve TV can use choose all bracket.
• TV Weight (PLASMA or Industry TV only recommend to use fix or tilt bracket)
• TV VESA installation hole distance on the back side
• Wall material ? (If you are not sure, send us a wall picture to check)
• concrete wall, cement wall ,masonry wall , brick wall, thick real wood wall can use all types of bracket
• hollow wall, dry wall , partition wall only suggest to use fixed or tilt type bracket
• Feature wall , if it’s reinforced or not? Do you have wood stud (more than 2 cm ) inside wall? If it is not reinforced. only recommend to use fix or tilt bracket.

If you need installation, please advise us in below occasion, extra charge

1 the installation need use ladder or chair ?

2 installation after 6PM or public holiday?

Want TV height adjustable, pls check gas strut mount

https://tvmountsg.com/blog/pick-tv-wall-mount/

https://www.facebook.com/media/set/?set=a.1528577037196344.1073741882.975947925792594&type=3

Suitable for 43inch dell monitor VESA 100*100 200*200

Dell UltraSharp 43 4K USB-C Hub Monitor - U4323QE

tips how to pick a TV bracket turn 90 degree

first must be single arm

https://tvmountsg.com/blog/choose-mount-for-90-degrees-swivel/
