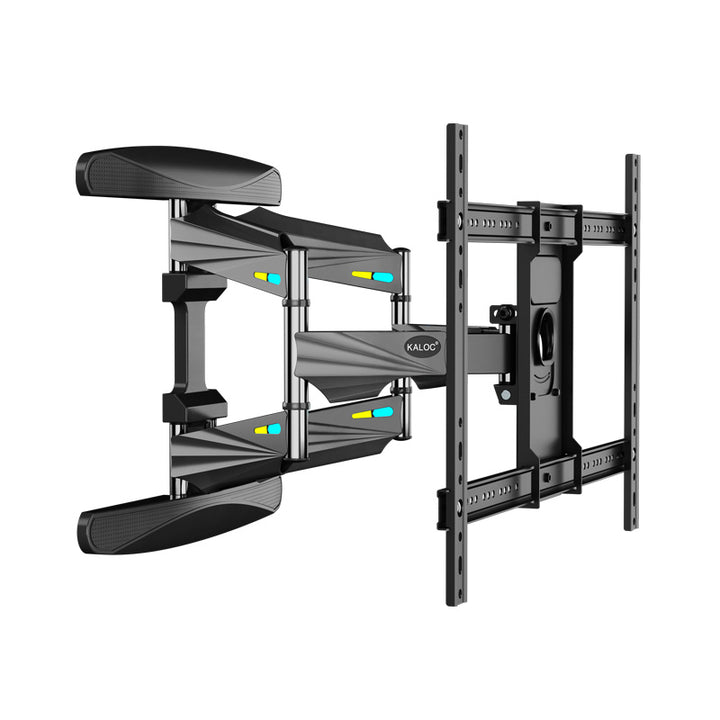

(S8) 55-76 inch TV bracket double arm Full Motion Wall Mount for LCD LED display

Model S8

1 PCS SGD 49 each

10 PCS SGD 32  each

Model :  S8

TV Size:55″ – 76″ LED LCD display
Weight Limit:68 kg
wall plate width 240 mm
VESA Compliance:
– 200 x 200mm
– 300 x 200mm
– 400 x 200mm
– 300 x 300mm
– 400 x 400mm
– 600 x 400mm
Tilt Angles:-5° ~ + 8°
Swivel: 160°
Cable Management: Yes
Min. Extension: 49 mm
Max. Extension: 491 mm
Weight: 7.7kg
Color: Black
Material: SPCC
Surface Treatment: Powder Painting Coating Finished

Modify S8 to VESA 400*600 vertical mount

f you want to customize the TV bracket to a VESA 400x600 layout for a vertical mount, simply punch a hole in the middle of the shorter pole and use it as the horizontal bar. Then, use the longer pole as the vertical hook.

https://www.youtube.com/shorts/vvCqpxEeT7g

Box size 57.5*44*6.5cm
If you want to make the TV flush on wall or cabinet. The hole size inside wall must be more than Width 65CM (58cm if no need hide the tv plate) *depth 4.9 CM* height 43CM ,we strongly suggest customers to take bracket first before drill hole.

bbracket

https://tvmountsg.com/blog/pick-tv-wall-mount/

W5 S8 double arm bracket comparison
